High cell density Layered SCR catalyst
With the government funded Green Innovation Company Support Project (so called Green New Deal Project), the product currently under commercialization process is the high density layered SCR catalyst (NTL-65C) for removing nitrogen oxides from LNG power plants. In this development the cell density is increased from 45 cpsi to 65 cpsi, but the thickness of inner wall is maintained at the level of 0.3 ㎜ to maximize NOx removal and minimize differential pressure drop for applications.
-
Product Usage
Removal of nitrogen oxide
-
Features
High density (65 cpsi) and low differential pressure (inner wall thickness 0.3 mm)
-
Application
LNG Power Plant and LNG Vessel
-
Expected
Effects-
Meet emission regulation (NOx)
-
Simplify SCR system structure design due to light weight catalyst
-
Increase combustion efficiency by improving differential pressure drop
-
Minimize required space
-
Low price and fast technical response
-
Specification
Type | Thickness (mm) | Pitch (h,mm) |
Width (P,mm) |
Specific Area (m²/m³) |
|||
---|---|---|---|---|---|---|---|
Forming sheet(t1) | plate sheet (t2) | ||||||
NANO | current product | Layered | 0.51 | 0.49 | 5.12 | 6.11 | 990 |
improved product | Layered | 0.32 | 0.31 | 3.17 | 5.91 | 1,200 ↑ | |
A社 (competitor) | Corrugate | 0.33 | 0.34 | 3.19 | 5.74 | 1,200 |
DeNOx-oxidation multi-functional catalyst
Scheduled to be commercialized in 2022 DeNOx-oxidation multi functional catalyst is consisted of an extruded Honeycomb type SCR catalyst and a coated portion with an oxidation catalyst ingredient that reduces NOx as well as unreacted NH3 from SCR process and CO and Hydrocarbon from exhaust.
-
Product Usage
Removal of nitrogen oxides, dioxins, carbon monoxide, hydrocarbons, and ammonia
-
Features
High specific surface area integrated DeNOx-oxidation multi functional catalyst
-
Application
LNG Power Plant, LNG Vessel etc
-
Expected
Effect-
Meet various emission regulations (NOx, CO, Hydrocarbon, NH3 slip)
-
Simplify SCR system layout
-
Minimize differential pressure drop
-
Minimize required space
-
Catalyst and system cost reduction
-

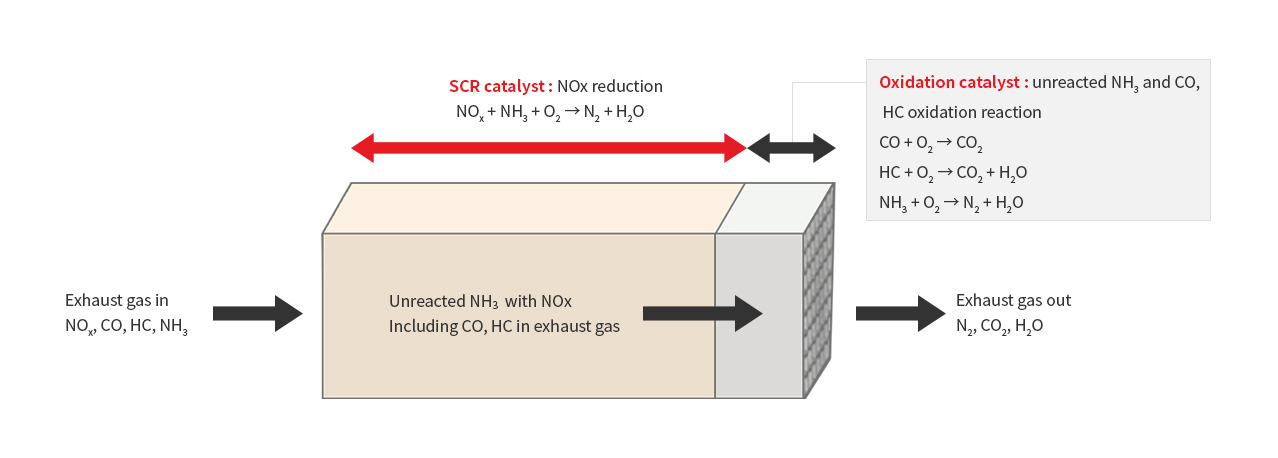

Conceptual diagram of the developed product
- Leveraging DeNOx catalyst in production
- CO, HC, NH3 Selective oxidation catalyst composition coated with a washcoating technique
- Possible to manufacture in honeycomb and layered type catalysts
